SINUS III TAP/TCT for Commercial and Industrial Bandsaws

SINUS III TAP/TCT
TUNGSTEN CARBIDE BLADES / NO. 076-37

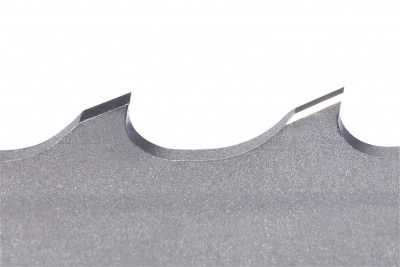

TCT band saw blade with proven ~4% high chrome alloyed tenacious backing material and a carbide tipped, diamond ground tooth edge.

The special Sinus III grind creates a tooth design with multi chipping sections for production cutting with lowest vibrations. Hallmarks of this high tech blade are best finish, highest cutting rates, heat resistance and long service life.

These blades are designed for universal high performance cutting -  especially for tool, stainless, and high speed steels.

HONSBERG SINUS III TAP SPECIFICATION

DIMENSIONS PITCHES / TEETH PER INCH (TPI)
WIDTH (MM) THICKNESS (IN) 0.85/1.15 1.1/1.6 1.5/2 2/3 3/4
27 x 0.90 1 1/16 x 0.035       x x
34 x 1.10 1 1/3 x 0.042     x x x
41 x 1.30 1 5/8 x 0.050     x x x
54 x 1.30 2 1/8 x 0.050 x   x x
54 x 1.60 2 1/8 x 0.063 x x x x
67 x 1.60 2 5/8 x 0.063 x x x
80 x 1.60 3 1/8 x 0.063 x x
